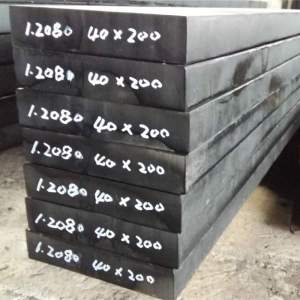

1.2080 Tool Steel Flat Bar

Name: 1.2080 Tool Steel Flat Bar
Brand: fushun
SKU: 18507386
Rating: 4.75 (10 reviews)

Categories	Tool Steel Bars
Brand	fushun
Model	1.2080 Tool Steel Flat Bar
FOB port	Shanghai
Terms of Payment	L/C, T/T
Update Time	Apr 30,2025

Contact Now

Favorites

Detail Information

1.2080 Tool Steel Flat Bar | Premium Cold Work Die Steel | D3 Tool Steel | FUSHUN METAL

1.2080 Tool Steel Flat Bar (D3 Cold Work Die Steel)

Product Description

FUSHUN METAL's 1.2080 Tool Steel Flat Bar is a premium high-carbon, high-chromium cold work die steel offering an exceptional combination of extreme wear resistance, high compressive strength, good dimensional stability, and moderate toughness. With a carefully engineered chemical composition featuring approximately 2% carbon and 12% chromium, our 1.2080 flat bar delivers outstanding performance in applications requiring superior resistance to abrasive and adhesive wear. Available in precision-milled finishes and tight dimensional tolerances, this specialized flat steel bar is ideal for demanding applications in industrial cutting and punching tools, cold forming dies, severe wear components, precision gauges, and other applications where maximum wear resistance is critical. Unlike standard tool steels, FUSHUN METAL's 1.2080 flat bars provide significantly enhanced hardness (up to 62-64 HRC) and wear resistance due to the high volume of primary chromium carbides, ensuring extended tool life in challenging wear environments. Each bar undergoes comprehensive quality control to ensure consistent properties, precise dimensions, and superior surface quality for reliable performance in the most demanding cold work applications.

Flat Bar Specifications

FUSHUN METAL offers 1.2080 Tool Steel Flat Bar in a comprehensive range of specifications to meet diverse application requirements:

Available Dimensions

Thickness (mm)	Width (mm)	Standard Length (mm)
3 - 10	20 - 100	500, 1000, 2000, 3000, 6000
11 - 20	30 - 150	500, 1000, 2000, 3000, 6000
21 - 30	40 - 200	500, 1000, 2000, 3000, 6000
31 - 50	50 - 300	500, 1000, 2000, 3000, 6000
51 - 80	60 - 400	500, 1000, 2000, 3000
81 - 120	80 - 500	500, 1000, 2000

* Custom dimensions available upon request

Dimensional Tolerances

Dimension	Standard Tolerance	Precision Tolerance (Available on Request)
Thickness	±0.2 mm up to 20 mm ±0.3 mm up to 50 mm ±0.5 mm up to 80 mm ±0.8 mm up to 120 mm	±0.1 mm up to 20 mm ±0.15 mm up to 50 mm ±0.25 mm up to 80 mm ±0.4 mm up to 120 mm
Width	±0.3 mm up to 100 mm ±0.5 mm up to 200 mm ±0.8 mm up to 400 mm ±1.0 mm up to 500 mm	±0.15 mm up to 100 mm ±0.25 mm up to 200 mm ±0.4 mm up to 400 mm ±0.5 mm up to 500 mm
Length	+10 mm / 0 mm	+5 mm / 0 mm
Flatness	0.3% of width	0.15% of width
Straightness	0.3% of length	0.15% of length
Squareness	0.5° max	0.25° max

Surface Finishes

Hot Rolled: Standard industrial finish
Hot Rolled and Annealed: Stress relieved for better machinability
Hot Rolled, Annealed, and Pickled: Clean scale-free surface
Precision Ground: Four sides ground with precision tolerances
Fine Milled: High-quality surface finish with tight tolerances
Polished: Smoother finish for reduced post-processing requirements
Custom Finishes: Available upon request for specific applications

Supply Conditions

Annealed: Soft condition for optimal machinability (210-250 HB)
Pre-hardened: Hardened and tempered to 35-42 HRC for applications requiring moderate hardness
Fully Heat Treated: Hardened and tempered to 58-62 HRC for immediate use
Custom Heat Treatment: Available to meet specific hardness and toughness requirements

Packaging Options

Individual Plastic Wrapping: For protection against environmental contaminants
Wooden Crates: For secure shipping of multiple bars
Steel Strapped Bundles: For economical shipping of standard orders
VCI Paper Wrapping: For enhanced corrosion protection
Oil Coating: Available for additional corrosion protection
Custom Packaging: Available to meet specific handling and storage requirements

Applications

FUSHUN METAL's 1.2080 Tool Steel Flat Bar is specifically engineered for applications requiring an optimal combination of extreme wear resistance, high compressive strength, and dimensional stability:

Cutting and Blanking Applications

Industrial shear blades
Slitter knives
Paper cutting knives
Trimming dies
Blanking punches and dies
Precision cutting tools
Guillotine blades
Perforating tools

Cold Forming Applications

Cold forming dies
Drawing dies
Deep drawing punches
Progressive dies
Thread rolling dies
Coining dies
Extrusion tools
Bending tools for high-strength materials

Severe Wear Applications

Wear plates
Forming rolls
Brick and tile molds
Burnishing tools
Guide rails
Wear bushings
Straightening rolls
Draw plates

Precision Components

Measuring tools
Precision gauges
Reference standards
Inspection fixtures
Calibration tools
Alignment blocks
Machine tool components
Inspection masters

Specialty Applications

Plastic mold components for abrasive materials
Powder compaction tools
Chisels and scrapers
Burnishing tools
Wood processing tools
Ceramic industry tooling
Anvils and mandrels
Ejector pins for abrasive plastics

Chemical Composition

FUSHUN METAL's 1.2080 Tool Steel Flat Bar features the following nominal composition per DIN 17350/EN ISO 4957 standards:

Element	Content (%)
Carbon (C)	1.90-2.20%
Silicon (Si)	0.10-0.60%
Manganese (Mn)	0.20-0.60%
Chromium (Cr)	11.00-13.00%
Molybdenum (Mo)	≤ 0.30%
Vanadium (V)	≤ 0.30%
Phosphorus (P)	≤ 0.030%
Sulfur (S)	≤ 0.030%
Iron (Fe)	Balance

Key Element Functions

Carbon (1.90-2.20%): Provides extremely high hardness and forms carbides with chromium. The high carbon content ensures maximum hardness and wear resistance.
Chromium (11.00-13.00%): Forms hard, wear-resistant chromium carbides and contributes to corrosion resistance. The high chromium content creates a significant volume of primary carbides that are critical for abrasion resistance.
Silicon (0.10-0.60%): Improves hardenability and contributes to overall strength.
Manganese (0.20-0.60%): Enhances hardenability and stability of carbides.
Vanadium (≤ 0.30%): When present, forms hard vanadium carbides that provide additional wear resistance and help control grain size.
Molybdenum (≤ 0.30%): When present, enhances hardenability and contributes to secondary hardening during tempering.

Physical and Mechanical Properties

Our 1.2080 Tool Steel Flat Bar offers an impressive combination of physical and mechanical properties that make it ideal for demanding applications:

Physical Properties

Property	Units	Value
Density	g/cm³	7.70
Melting Range	°C	1370-1420
Thermal Conductivity (20°C)	W/m·K	20
Specific Heat Capacity	J/kg·K	460
Electrical Resistivity	Ω·mm²/m	0.65
Modulus of Elasticity (20°C)	GPa	210
Coefficient of Thermal Expansion (20-100°C)	10⁻⁶/K	10.5
Coefficient of Thermal Expansion (20-400°C)	10⁻⁶/K	11.0

Mechanical Properties (Annealed Condition)

Property	Value
Hardness	210-250 HB
Tensile Strength	700-800 MPa
Yield Strength	450-550 MPa
Elongation	5-10%
Reduction of Area	8-15%

Mechanical Properties (Hardened and Tempered to 60-62 HRC)

Property	Value
Hardness	60-62 HRC (700-750 HV)
Compressive Strength	2700-3000 MPa
Transverse Rupture Strength	1800-2200 MPa
Impact Strength (Charpy V-notch)	4-8 J

Dimensional Change During Heat Treatment

Approximate dimensional changes during hardening (oil quenching from 970°C):

Dimension	Typical Change
Length	+0.10% to +0.20%
Width	+0.10% to +0.25%
Thickness	+0.15% to +0.30%

Special Features of FUSHUN METAL's 1.2080 Tool Steel Flat Bar

Our 1.2080 Tool Steel Flat Bar offers several distinctive advantages that set it apart from conventional tool steel products:

Exceptional Wear Resistance

1.2080 provides superior resistance to various wear mechanisms:

Outstanding Abrasive Wear Resistance: The high volume of hard chromium carbides provides exceptional resistance to abrasive wear, extending tool life in applications processing abrasive materials.
Excellent Adhesive Wear Resistance: Good resistance to galling and metal-to-metal wear in forming applications.
Edge Retention: Superior ability to maintain sharp cutting edges during prolonged use, critical for cutting and shearing applications.
Stable Carbide Structure: The chromium carbides remain stable during heat treatment, maintaining consistent wear properties.
Reduced Tool Maintenance: Longer intervals between tool reconditioning due to improved wear resistance.
Predictable Wear Pattern: Progressive, predictable wear characteristics allowing for scheduled maintenance rather than unexpected failures.
Multiple Reconditioning Capability: Maintains properties through multiple regrinding and resharpening cycles.

High Dimensional Stability

1.2080 offers excellent dimensional stability for precision applications:

Good Heat Treatment Stability: Minimal distortion during proper heat treatment processes.
High Resistance to Plastic Deformation: Maintains shape under high mechanical loads due to excellent compressive strength.
Low Thermal Expansion: Relatively low coefficient of thermal expansion for consistent dimensions across temperature ranges.
Consistent Response to Grinding: Minimal distortion during precision grinding operations.
Long-term Dimensional Stability: Maintains critical dimensions over extended periods, important for gauging and measuring applications.
Stress-Relief Capability: Responds well to stress-relieving treatments to enhance dimensional stability.
Uniform Heat Treatment Response: Consistent dimensional changes during heat treatment for predictable final dimensions.

Balanced Material Properties

1.2080 offers an excellent combination of properties for demanding applications:

High Hardness: Achievable hardness of 60-64 HRC after proper heat treatment, essential for wear resistance.
Good Compressive Strength: Excellent resistance to compressive forces under high mechanical loads.
Moderate Toughness: Adequate toughness for many cold work applications, balanced with high wear resistance.
Moderate Corrosion Resistance: The high chromium content provides some resistance to corrosion and staining.
Good Grindability: Despite high hardness, can be ground effectively with appropriate techniques.
Polishability: Can be polished to a high finish for applications requiring smooth surfaces.
Moderate Machinability in Annealed Condition: Acceptable machinability when in the soft annealed state.

Manufacturing Excellence

FUSHUN METAL employs specialized processes to ensure our 1.2080 flat bars deliver reliable performance in critical applications:

Controlled Melting Process: Precise control of composition and cleanliness to ensure consistent properties.
Optimized Forging: Carefully controlled forging procedures to ensure uniform carbide distribution.
Specialized Annealing: Proper spheroidizing annealing to optimize machinability and subsequent heat treatment response.
Precision Milling: Advanced milling capabilities to achieve tight dimensional tolerances and excellent surface finish.
Controlled Heat Treatment: Precise heat treatment parameters to achieve optimal hardness and microstructure.
Rigorous Inspection: Comprehensive testing to ensure consistent properties, dimensions, and surface quality.
Carbide Distribution Control: Special processing to ensure optimal size and distribution of carbides for maximum wear resistance.
Decarburization Prevention: Special handling to minimize surface decarburization, preserving surface properties.

Heat Treatment Recommendations

For customers performing their own heat treatment of 1.2080 tool steel flat bar, FUSHUN METAL recommends the following parameters:

Stress Relieving

Heat slowly to 650-700°C (1200-1290°F)
Hold for minimum 2 hours per 25mm of thickness
Cool slowly in furnace to below 500°C (930°F), then air cool
Recommended before extensive machining to minimize distortion

Annealing

Heat slowly to 800-850°C (1470-1560°F)
Hold for 1-2 hours per 25mm of thickness
Cool very slowly in furnace at a rate not exceeding 10°C (18°F) per hour to 650°C (1200°F)
Continue cooling in furnace
Resulting hardness: 210-250 HB

Hardening

Preheating: Step 1: 550-600°C (1020-1110°F)
Preheating: Step 2: 800-850°C (1470-1560°F)
Austenitizing: 950-980°C (1740-1795°F)
- Lower temperatures for better toughness, higher temperatures for maximum hardness and wear resistance
Holding time: 15-30 minutes after thorough heating
Quenching options:
- Oil: Preferred method for most applications
- Air: Only for simple shapes and small sections
- Martempering: Recommended for complex shapes to minimize distortion
Achievable hardness after quenching: 62-64 HRC

Tempering

Temper immediately after cooling to room temperature
Double tempering recommended (minimum two tempers)
Tempering temperature selection based on desired final hardness:
- 150-180°C (300-355°F): 60-62 HRC (maximum hardness with minimal toughness)
- 180-250°C (355-480°F): 58-60 HRC (balanced hardness and adequate toughness)
- 250-300°C (480-570°F): 56-58 HRC (increased toughness with good hardness)
- 450-500°C (840-930°F): 52-54 HRC (maximum toughness, but reduced hardness)
Avoid tempering in the range of 250-450°C (480-840°F) if possible due to potential temper brittleness
Hold at temperature for minimum 2 hours per temper
Cool to room temperature between tempering cycles
Cryogenic treatment (optional): -70°C to -196°C (-95°F to -320°F) between quenching and first temper to convert retained austenite and enhance dimensional stability

Surface Treatments (Optional)

Nitriding: Can be performed after final heat treatment to further enhance surface hardness (up to 1200 HV)
PVD Coating: TiN, TiCN, TiAlN, or other coatings can be applied after final heat treatment for enhanced surface properties
Vapor Deposition: CVD or PVD processes can be used to deposit wear-resistant coatings

Quality Assurance and Testing

Every batch of FUSHUN METAL's 1.2080 Tool Steel Flat Bar undergoes rigorous testing to ensure it meets our exacting quality standards:

Chemical Composition Analysis: Spectrographic testing to verify precise element content critical for performance, with special attention to carbon and chromium levels.
Mechanical Property Testing: Hardness testing to confirm proper annealing or heat treatment.
Microstructural Examination: Metallographic analysis to verify proper structure, grain size, and carbide distribution.
Carbide Assessment: Specialized evaluation of carbide type, size, and distribution critical for wear resistance.
Ultrasonic Testing: 100% ultrasonic inspection available to detect internal defects and ensure soundness.
Magnetic Particle Inspection: Available to detect surface or near-surface defects.
Dimensional Verification: Precision measurement to ensure tight dimensional tolerances.
Flatness Testing: Verification of flatness to ensure minimal warpage.
Heat Treatment Response Verification: Sample testing to confirm proper response to hardening and tempering.
Wear Resistance Testing: Available for critical applications requiring verified wear performance.
Inclusion Assessment: Evaluation of non-metallic inclusion content for critical applications.
Decarburization Testing: Verification of surface carbon content to ensure minimal decarburization.

Certifications Provided

Material Test Certificates according to EN 10204 3.1
Chemical composition analysis
Mechanical property test results
Dimensional inspection report
Heat treatment certification when applicable
Special property verifications available upon request
Certificate of conformity to ordered specifications
Ultrasonic testing reports when specified
Metallographic examination reports when specified

International Standards Compliance

Our 1.2080 Tool Steel Flat Bar complies with the following international standards:

Standard	Designation
DIN / EN	1.2080 / X210Cr12
AISI	D3
JIS	SKD1
BS	BD3
GOST	Kh12
UNI	X210Cr13 KU
AFNOR	Z200C12
GB (China)	Cr12

Machining Recommendations

To achieve optimal results when machining 1.2080 tool steel flat bars, FUSHUN METAL recommends the following parameters:

Annealed Condition (210-250 HB)

Operation	Tool Material	Cutting Speed	Feed Rate	Depth of Cut	Coolant
Turning	Cemented Carbide P20-P30	90-120 m/min	0.2-0.3 mm/rev	1-3 mm	Yes
Turning	High Speed Steel	15-20 m/min	0.1-0.2 mm/rev	0.5-2 mm	Yes
Milling	Cemented Carbide P20-P40	80-110 m/min	0.1-0.2 mm/tooth	1-4 mm	Yes
Milling	High Speed Steel	12-18 m/min	0.05-0.15 mm/tooth	0.5-3 mm	Yes
Drilling	High Speed Steel	10-15 m/min	0.05-0.10 mm/rev	-	Yes
Drilling	Cemented Carbide	60-80 m/min	0.1-0.15 mm/rev	-	Yes
Grinding	SiC or Al₂O₃ Wheel	25-30 m/sec	-	0.005-0.02 mm	Yes

Grinding Recommendations (Hardened Condition)

Operation	Wheel Type	Grit	Grade	Wheel Speed	Coolant
Surface Grinding	Aluminum Oxide	46-60	H-I	25-30 m/s	Abundant
Cylindrical Grinding	Aluminum Oxide	46-60	H-I	25-30 m/s	Abundant
Internal Grinding	Aluminum Oxide	60-80	H-I	20-25 m/s	Abundant
Tool & Cutter Grinding	Green Silicon Carbide	100-120	H-I	25-30 m/s	Abundant
Profile Grinding	CBN or Diamond	100-120	-	25-35 m/s	Abundant

* These values are guidelines only; adjustments may be necessary based on specific equipment and conditions

Machining Tips

Use rigid setups with minimum overhang to minimize vibration and chatter.
Apply adequate cooling, especially when machining in annealed condition.
For complex geometries, machine in the annealed condition before heat treatment.
Use sharp tools and replace at regular intervals to maintain cutting efficiency.
After EDM processing, remove the affected layer by grinding to prevent micro-cracking.
After heavy machining, consider stress relieving to minimize distortion during final heat treatment.
When grinding hardened material, use gentle cutting conditions and abundant cooling to prevent rehardening of the surface.
The high carbide content in 1.2080 causes increased tool wear; adjust tooling selection and cutting parameters accordingly.
Consider using CBN (cubic boron nitride) grinding wheels for more efficient grinding of hardened material.
Allow extra machining allowance (approximately 0.5mm per side) to compensate for potential distortion during heat treatment.

Welding Recommendations

Welding of 1.2080 is extremely difficult due to its high carbon and alloy content and should generally be avoided. If absolutely necessary:

Preheat: 350-400°C (660-750°F)
Filler Material: Special high-carbon, high-chromium welding electrodes
Process: TIG/GTAW only, with highly skilled operators
Interpass Temperature: Maintain 350-400°C (660-750°F)
Post-weld Heat Treatment: Essential - full annealing followed by complete rehardening and tempering cycle
Limitations: Only consider for minor repairs; structural welds not recommended
Alternative: Consider brazing with high-temperature alloys for joining operations rather than fusion welding

Comparative Advantages over Other Tool Steel Grades

Understanding how 1.2080 tool steel flat bar compares to other grades helps in selecting the optimal material for your application:

Property	1.2080 (D3)	1.2379 (D2)	1.2436 (D6)	1.2510 (O1)	1.2842 (O2)
Carbon Content	1.9-2.2%	1.5-1.6%	2.0-2.3%	0.9-1.0%	0.9%
Chromium Content	11-13%	11-13%	11-13%	0.5%	0.4%
Wear Resistance	Excellent	Very Good	Excellent	Good	Good
Toughness	Moderate	Good	Limited	Very Good	Very Good
Dimensional Stability	Good	Very Good	Good	Moderate	Moderate
Machinability (Annealed)	Fair	Fair	Poor	Good	Good
Grindability	Fair	Good	Fair	Very Good	Very Good
Typical Applications	Severe wear, cutting tools	Progressive dies, heavy-duty cutting	Extreme abrasion, cold forming	Precision tools, plastic molds	General purpose tooling

Application-Specific Recommendations

FUSHUN METAL provides tailored recommendations for specific applications of 1.2080 tool steel flat bar:

Cutting and Blanking Applications

Recommended hardness: 60-62 HRC for optimal cutting performance
For shear blades and cutting tools, ensure proper edge geometry and support
Consider multiple tempering (minimum 2 cycles) to ensure complete transformation of retained austenite
For precision cutting edges, finish by grinding after heat treatment
Maintain proper clearance angles to reduce edge loading
For processing abrasive materials, consider cryogenic treatment for enhanced wear resistance
When regrinding cutting edges, take light cuts with plenty of coolant to prevent overheating
For punching applications, ensure proper alignment and adequate support to prevent chipping

Cold Forming Applications

Recommended hardness: 58-60 HRC for balanced wear resistance and adequate toughness
For deep drawing operations, ensure highly polished surfaces to reduce friction and galling
Consider lower tempering temperatures to maximize hardness for high-pressure applications
For forming of high-strength materials, ensure proper support and rigidity of the tooling
Implement adequate lubrication strategies to reduce wear and friction
For progressive dies, ensure precise alignment to prevent uneven loading
Consider PVD coating (TiN, TiCN, or CrN) for enhanced surface properties
For complex forming operations, consider nitriding after tempering for improved surface hardness

Precision Component Applications

Recommended hardness: 58-60 HRC for dimensional stability with good wear resistance
For gauges and measuring tools, perform stress relieving before final machining
Consider cryogenic treatment after hardening to enhance dimensional stability
Triple tempering recommended for maximum dimensional stability in precision applications
For critical dimensions, allow for slight growth during heat treatment (typically 0.1-0.3%)
Implement proper grinding techniques with minimal heat generation to preserve accuracy
For long-term dimensional stability, consider a stabilizing treatment (low-temperature cycle)
Store precision tools in controlled environment to prevent dimensional changes due to temperature fluctuations

Customization Capabilities

FUSHUN METAL offers extensive customization options to meet your specific application requirements:

Custom Dimensions: Special sizes manufactured to exact specifications for your application.
Modified Chemical Composition: Slight adjustments to standard composition available to optimize specific properties.
Special Melting Routes: Premium vacuum degassed or electroslag remelted material available for critical applications requiring enhanced cleanliness.
Pre-Machining Services: Basic machining including cutting to length, face milling, drilling, and tapping available.
Heat Treatment Services: Custom heat treatment to achieve specific hardness levels.
Surface Treatments: Nitriding, PVD coating, and other treatments available upon request.
Specialized Testing: Application-specific testing protocols available upon request.
Custom Packaging: Specialized packaging for long-term storage or export shipments.
Edge Preparation: Chamfering and deburring of edges for safe handling.
Technical Consultation: Expert metallurgical support for your specific application challenges.
Material Certification: Enhanced certification packages for critical applications.
Preformed Blanks: Basic pre-forms available to reduce machining time.

Why Choose FUSHUN METAL for 1.2080 Tool Steel Flat Bar

When you select FUSHUN METAL as your supplier for 1.2080 Tool Steel Flat Bar, you partner with a leading manufacturer committed to excellence:

Cold Work Tool Steel Expertise: Specialized experience in manufacturing premium high-carbon, high-chromium tool steel products with optimal properties.
Advanced Production Facilities: State-of-the-art melting, forging, and processing equipment specifically optimized for high-alloy tool steels.
Stringent Quality Control: Comprehensive testing and inspection protocols ensure consistent performance in demanding applications.
Metallurgical Knowledge: In-depth understanding of heat treatment and microstructural control of high-carbon tool steels.
Supply Chain Reliability: Robust inventory management and production planning to ensure consistent availability of critical materials.
Technical Support: Expert assistance in material selection, heat treatment guidance, and application support.
Global Capabilities: Worldwide shipping network with experience in international documentation and compliance.
Material Traceability: Complete documentation and batch traceability for quality assurance.
Continuous Improvement: Ongoing research and development in tool steel processing and performance.
Industry Compliance: Materials and processes that meet or exceed international standards for critical applications.
Competitive Pricing: Excellent value combined with superior quality and service.
Environmental Responsibility: Commitment to sustainable manufacturing practices and environmental management.

Request Information

Contact FUSHUN METAL today to discuss your 1.2080 Tool Steel Flat Bar requirements. Our technical team is ready to assist you with:

Detailed product specifications
Technical consultations for your specific application
Heat treatment recommendations for optimal properties
Custom dimension and processing requirements
Pricing inquiries and delivery schedules
Sample requests for evaluation

FUSHUN METAL – Your trusted partner for premium cold work tool steel solutions that deliver consistent quality, superior wear resistance, and exceptional dimensional stability in the most demanding tooling applications.
