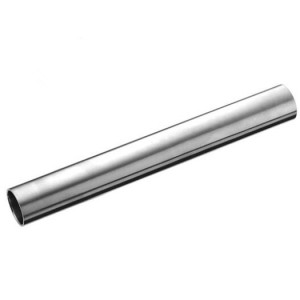

316Ti S31635 1.4571 Stainless Steel Seamless Round Pipe Tube

316Ti S31635 1.4571 Stainless Steel Seamless Round Pipe Tube
316Ti S31635 1.4571 Stainless Steel Seamless Round Pipe Tube
316Ti S31635 1.4571 Stainless Steel Seamless Round Pipe Tube316Ti S31635 1.4571 Stainless Steel Seamless Round Pipe Tube316Ti S31635 1.4571 Stainless Steel Seamless Round Pipe Tube316Ti S31635 1.4571 Stainless Steel Seamless Round Pipe Tube316Ti S31635 1.4571 Stainless Steel Seamless Round Pipe Tube
CategoriesStainless Steel Tube
AlbumView larger image
Brandfushun
Model316Ti S31635 1.4571
Outside diameter range10-300mm
Delivery conditionHarden
Surface conditionAcid pickling / polished
FOB portSHANGHAI
Terms of PaymentL/C, T/T
Update Time2020-01-28
Detail Information
Introduction
316Ti (UNS S31635) is a titanium stabilised version of 316 molybdenum-bearing austenitic stainless steel. The 316 alloys are more resistant to general corrosion and pitting/crevice corrosion than the conventional chromium-nickel austenitic stainless steels such as 304. They also offer higher creep, stress-rupture and tensile strength at elevated temperature. High carbon Alloy 316 stainless steel can be susceptible to sensitisation, the formation of grain boundary chromium carbides at temperatures between approximately 900 and 1500°F (425 to 815°C) which can result in intergranular corrosion. Resistance to sensitisation is achieved in Alloy 316Ti with titanium additions to stabilise the structure against chromium carbide precipitation, which is the source of sensitisation. This stabilisation is achieved by an intermediate temperature heat treatment, during which the titanium reacts with carbon to form titanium carbides. This significantly reduces susceptibility to sensitisation in service by limiting the formation of chromium carbides. Thus, the alloy can be used for extended periods at elevated temperatures without compromising its corrosion resistance. 316Ti has equvilent corrosion resistance to sensitisation as the low carbon version 316L.
Product Details
OD range: 6-219mm(0.2-8.6 inch)
WT range:0.5-25mm(0.02-1 inch)
Length range:1-12 meter(3-40 foot)
Tolerance on hot rolled condition: OD+/-1%, WT+/-10%
Tolerance on cold drawn/rolled condition: OD +/-0.5%, WT+/- 0.15mm
Delivery condition: Harden/Annealed
Surface condition: Acid pickling / polished
Property Information
Available Tube Product form Straight Coiled Seamless Seam welded, cold redrawn and annealed
Typical Applications Chemical processes High temperature Automotive Control lines Industries predominantly using this Grade Chemical processes Oil and Gas Automotive
Typical Manufacturing Specifications ASTM A213 BS EN 10216 part 5 Also individual customer specifications.
Tube ends
The tubes come with square cut and deburred ends or beveled end with plastic caps.
Certification
The product is supplied with 3.1.B inspection certificate, according to the standards EN 10204 and ISO 10474.
Identification and Marking
Steel Pipe are marked in indelible ink, the details being repeated along the entire length of each tube and on a label, as follows:
Manufacturer’s trademark – manufacturing standard – dimensions -steel grade – supply condition – cast no. – item number.
Produce Process
Seamless Steel Pipe Process: Round bar→punched→grinded surface→annealed→grinded surface→acid pickling→cold rolled→annealed→Acid pickling or polished→cutting length→package
Inspection and Test
Chemical, Tensile test, intergranular corrosion, flat test, expand test, nonmetallic inclusion, hydraulic test.
Package
Tubes will bundled by steel strip and not exceed 3 tons each batch. If thin wall thickness, we will put it into wooden case.
