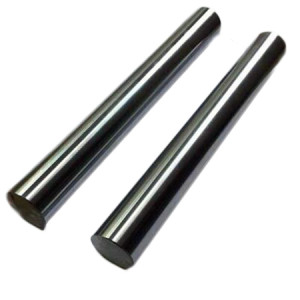

F22 1.7380 10CrMo9-10 ASTM A182 Stainless Steel Bar

Name: F22 1.7380 10CrMo9-10 ASTM A182 Stainless Steel Bar
Brand: fushun
SKU: 18192837
Rating: 4.75 (10 reviews)

Categories	Steel Forgings
Brand	fushun
Model	F22 1.7380 10CrMo9-10
Diameter	40-550mm
Delivery condition	Forged, Rolled
Surface condition	black, bright
FOB port	shanghai
Terms of Payment	L/C, T/T
Update Time	May 9,2025

Contact Now

Favorites

Detail Information

Application

F22 stainless steel is a low alloy steel containing nominally 2.25% Chromium. This F22 stainless steel is widely used in the oil patch wellhead applications for connectors, hangers and block valves. Hardness levels up to 22 HRC are approved to NACE MR0175. The grade is often used as the base metal for clad components. If supplied to ASTM A182 in the normalized and tempered condition, the 0.2% Proof Stress minimum is 30 KSI.

Chemical Composition(%)

C	Mn	Si	P	S	Cr	Mo
0.05-0.15	0.30-0.60	0.50 max	0.040 max	0.040 max	2.00-2.50	0.87-1.13

All Grades Comparison

Material no.	DIN	ASTM
1.738	10CrMo9-10	F22

Mechanical Properties(T=20°C)

Delivery Condition	Tensile Strength Rm (Mpa)	Yield Strength Rp0.2 (Mpa)	Elongation(%)	Reduction Ratio(%)	Hardness (HB)
Normalized and Tempered	900 min	675 min	/	/	/
Slow Cooling	415 min	205 min	20 min	35 min	170 max

HEAT TREATMENT

Normalizing: Temperature: 920°-980°C.

Stress Relieving: Stree relieving to remove maching stresses should be carried out by heating to 675°C, holding for one hour at heat, followed by air cooling. This operation is performed to reduce distortion during heat treatment.

Austenization: Temperature:920°-980°C

Tempering: Tempering temperature: 650°-750°C

Forging: Hot forming temperature: 850°-1050°C
